There are two basic types of telescopes, refractors and reflectors. The
of the telescope that gathers the light, called the objective,
determines the type of telescope. A refractor
telescope uses a glass lens as its objective. The glass lens is at the
of the telescope and light is bent (refracted) as it passes through the
lens. A reflector telescope uses a mirror as its objective. The
mirror is close to the rear of the telescope and light is bounced off
(reflected) as it strikes the mirror.
The refractor telescope uses a lens to gather and focus light. The first
telescopes built were refractors. The small telescopes sold in department
stores are refractors, as well as, those used for rifle scopes.
- Refractor telescopes are rugged. After the initial alignment, their
optical system is more resistant to misalignment than the reflector
- The glass surface inside the tube is sealed from the atmosphere so it
rarely needs cleaning.
- Since the tube is closed off from the outside, air currents and effects
due to changing temperatures are eliminated. This means that the images are
steadier and sharper than those from a reflector telescope of the same
Though excellent refractors are still made, the disadvantages of the
telescope have blocked the construction of very large refractors for use in
Because of these disadvantages, the largest refractor telescope built is
at Yerkes Observatory. It has an objective 1.02 meters (40 inches) across
at one end of a 19.2-meter (63 feet) tube. The two

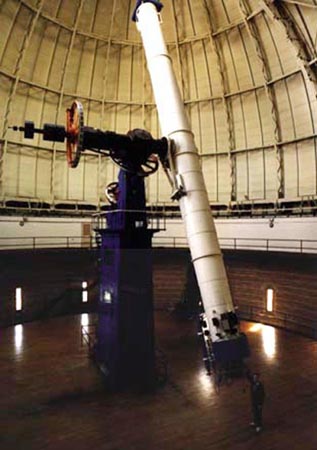

largest refractors are shown below. The first picture is the 40-inch
Clicking on the image will lead you to more information about

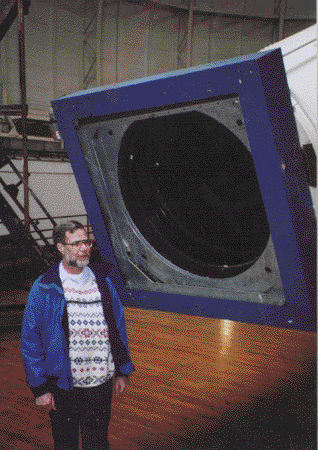

this telescope (and better pictures!) in another window. The second picture shows an
astronomer (Kyle Cudworth) next to the objective to give you an idea of the size of the
telescope. Notice the size of the people in the first picture! The third picture is
the 0.91-meter (36-inch) refractor at
Notice the astronomer at the lower left.
Clicking on the image will take you to the Lick Observatory webpage about the telescope in another window. The last
picture is E.E. Barnard at the eyepiece of the Lick 36-inch.
- All refractors suffer from an effect called chromatic
aberration (``color deviation or distortion'') that
produces a rainbow of colors around the image. Because of the wave nature
the longer wavelength light (redder colors) is bent less than the shorter
light (bluer colors) as it passes through the lens. This is used in prisms
pretty rainbows, but can it ruin an image!
There a couple of ways to reduce
chromatic aberration. One way uses multiple compensating lenses to
chromatic aberration. The other way uses a very long objective focal
(distance between the focus and the objective)
to minimize the effect. This is why the early refracting
telescopes were made very long.
- How well the light passes through the lens varies with the wavelength
light. Ultraviolet light does not pass through the lens at all.
- How well the light passes through decreases as the thickness of the
- It is difficult to make a glass lens with no imperfections inside the
with a perfect curvature on both sides of the lens.
- The objective lens can be supported only at the ends. The glass lens
will sag under its own weight.
